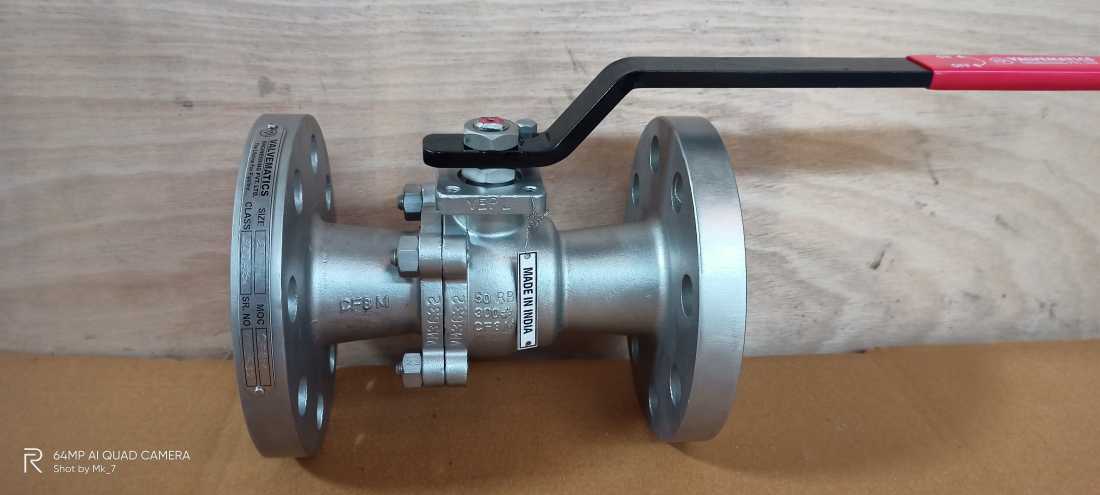

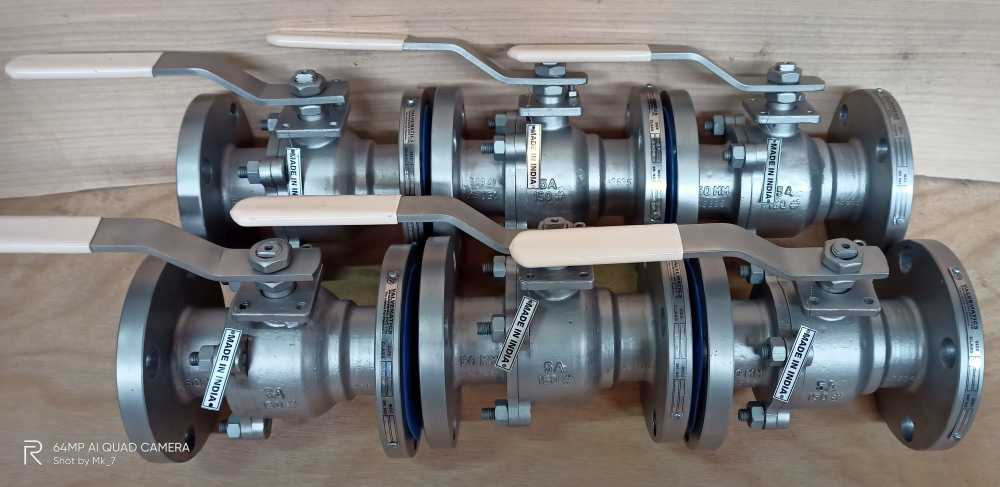

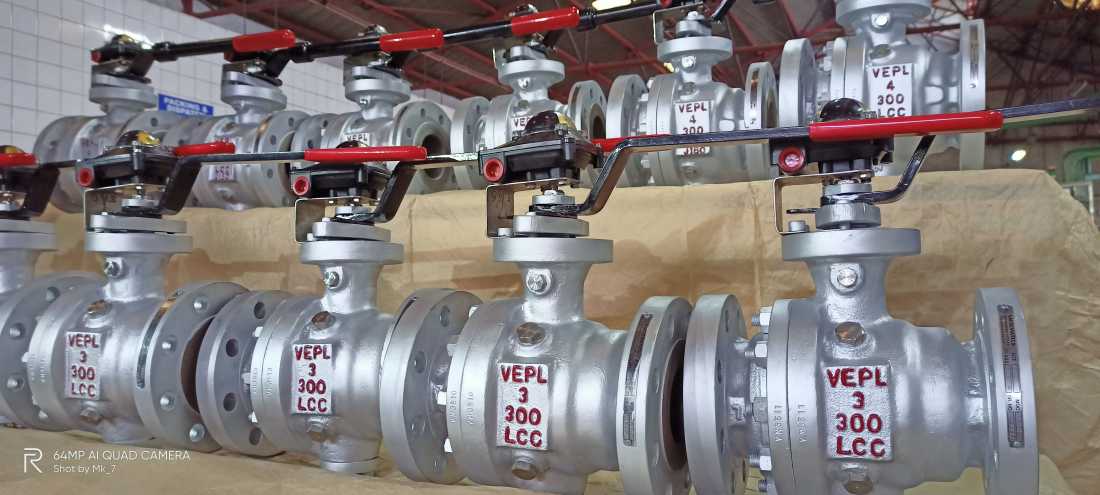

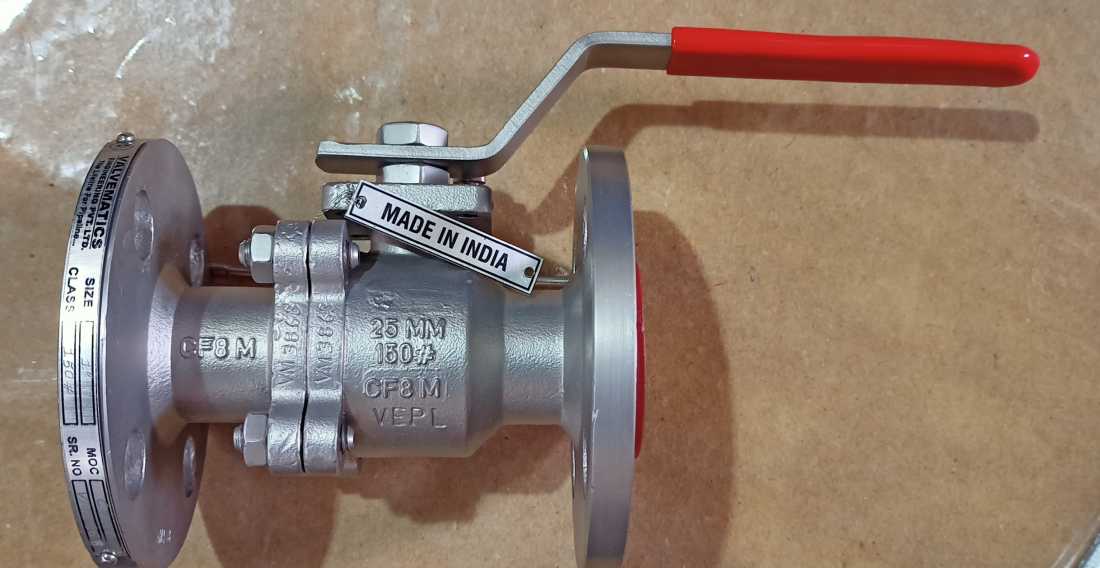

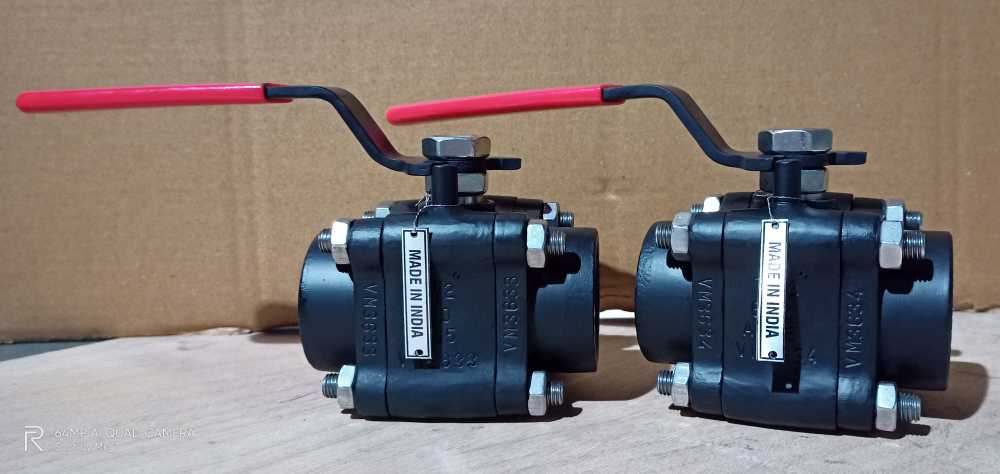

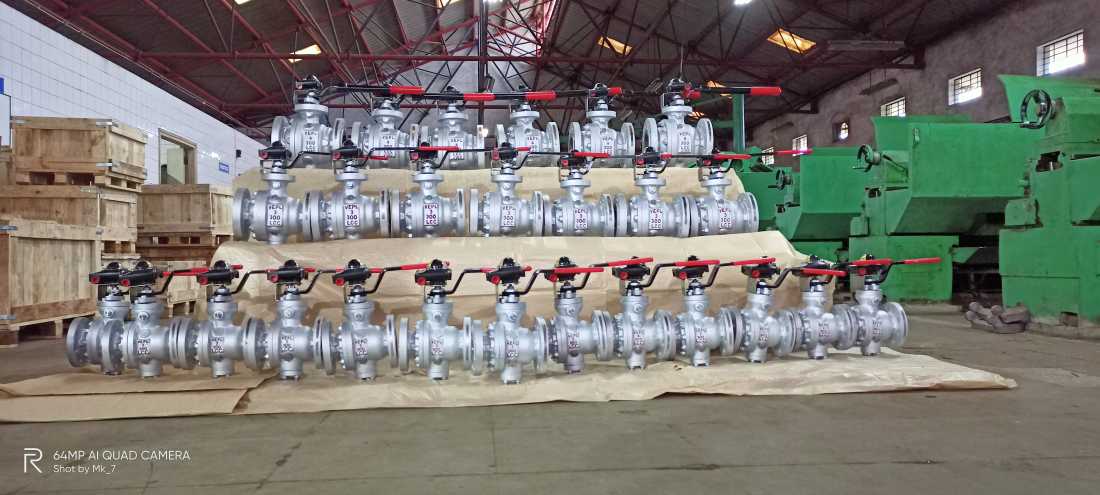

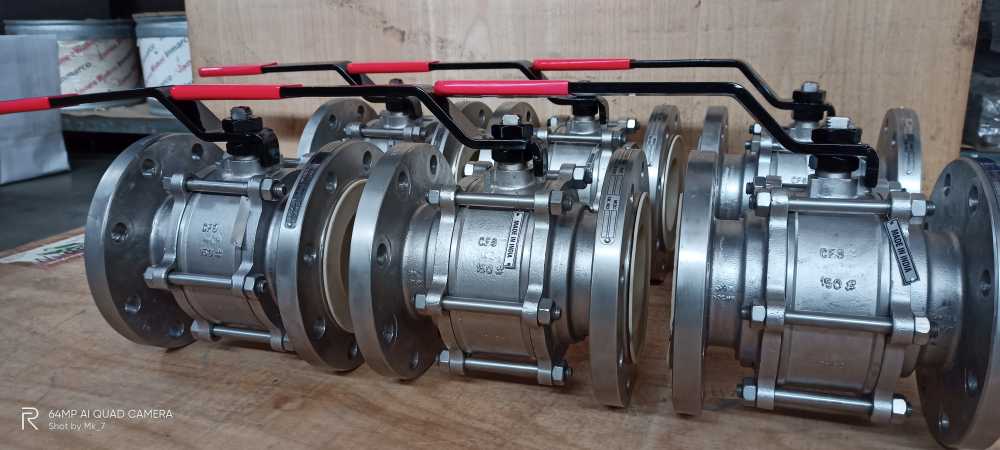

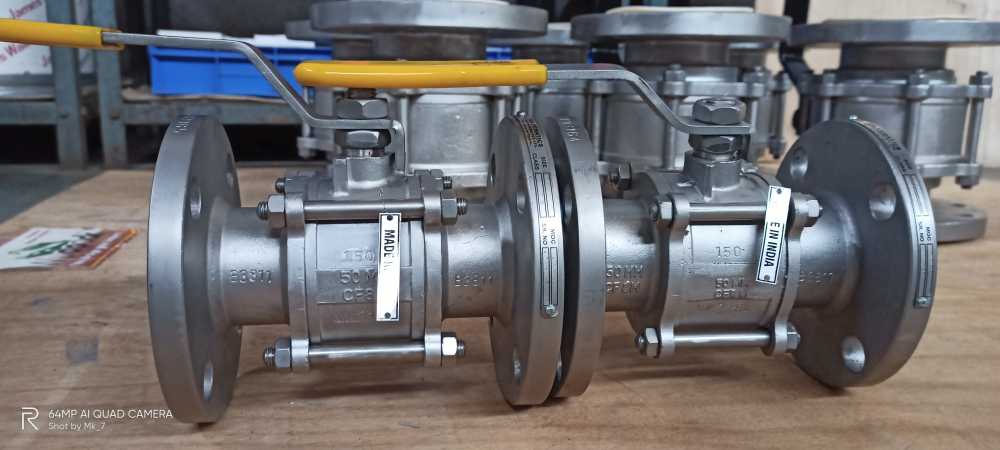

BALL VALVES

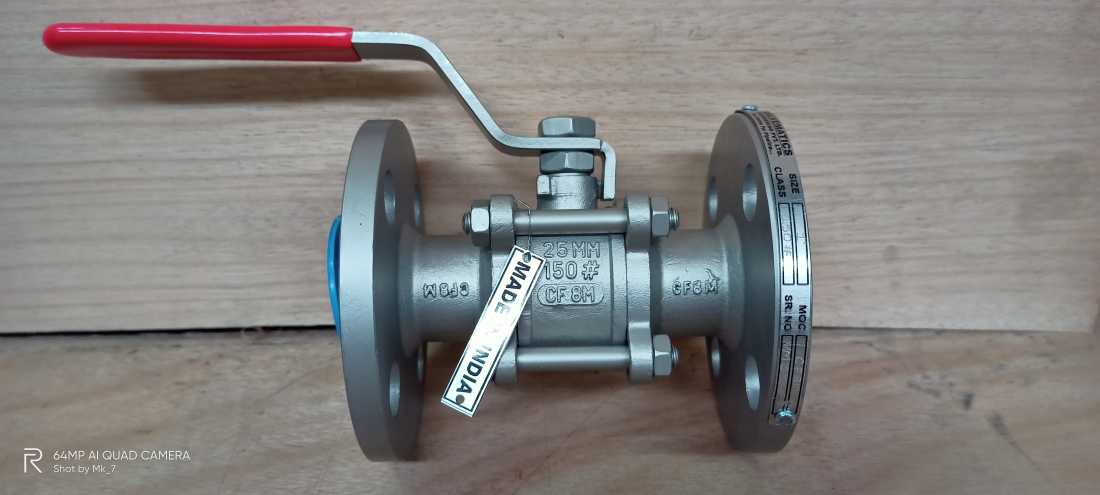

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball into quarter turn (90 degrees) around its axis, the medium can flow through or can be blocked. It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve’s status.
Size: ½″ up to 36″ (DN 15 up to DN 900)
Pressure Rating (Class): ASME 150# to 2500#
Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

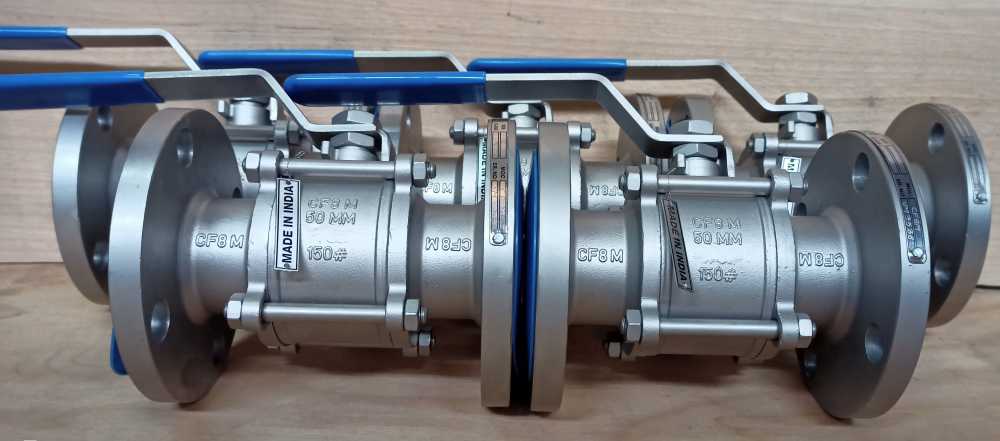

Design Construction: One/Two/Three Piece Design, Trunnion/Side Entry, Floating, Soft and Metal Seated, Extended Stem. Full Bore Reduced Bore.
Design Standard: API 6D, API 608, ISO17292, BS5351
Test (Inspection) Standard: API 598, ISO 5208, EN 12266 Part-1.
Pressure / Temperature Rating: ASME B 16.34, API 6D
End Connection: Screwed, Socket Weld, Flanged RF/FF/RTJ RING JOINT, Butt-Weld

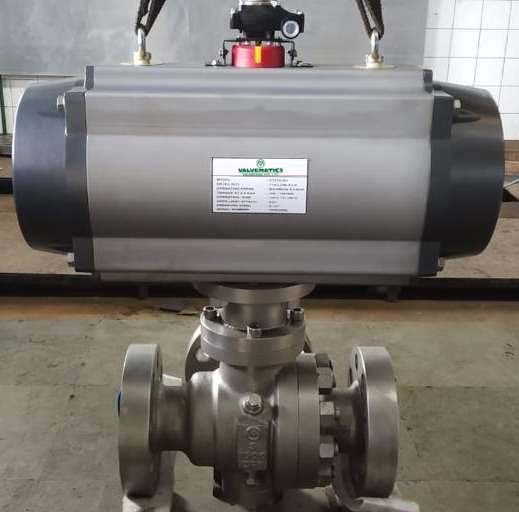

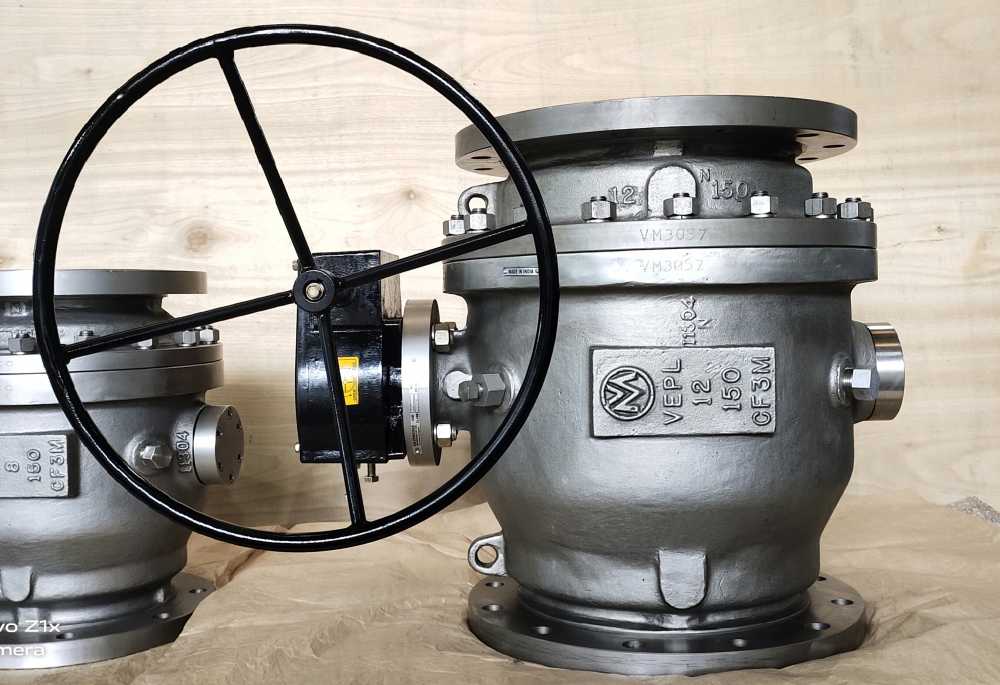

Operator / Actuator: HandlE, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
